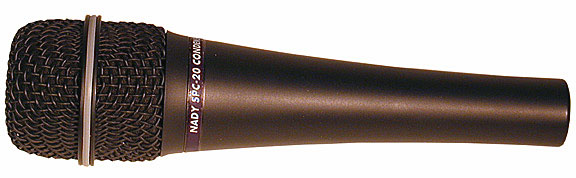

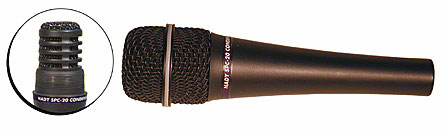

SPC-20



LINKS

User Guide SPC-20 (PDF)



Image SPC-20 (JPG)


The SPC-20 is designed for the most critical live sound and recording applications and is ideal for handheld vocal and mid-high frequency instrument miking.
  • Unique 2-layer ballscreen "pop" filter for elimination of breath noises

  • Pressure gradient back electret condenser and transformerless FET circuitry for ultra transparency and enhanced transient response

  • Wide frequency response (50~16,000Hz) with specially tailored mid-high presence for vocal punch and exceptional crisp, clear sound

  • Supercardioid polar pattern for maximum feedback rejection

  • Ultra-high (140dB) SPL capacity and wide 115dB dynamic range for maximum freedom from distortion even in the most demanding applications

  • 4.5mV/Pa sensitivity, and 200 Ohms rated impedance with 1000 Ohms minimum load impedance

  • Superior internal shockmounting to eliminate handling noise

  • Lightweight, rugged and durable

  • Requires +48V phantom power, 2mA

  • 1.9" Diam. x 6.9" (48 Diam. x 175 mm), 9.3 oz
    (260 g)

  • Gold plated XLR connector
