SPC-10



LINKS

User Guide SPC-10 (PDF)



Image SPC-10 (JPG)

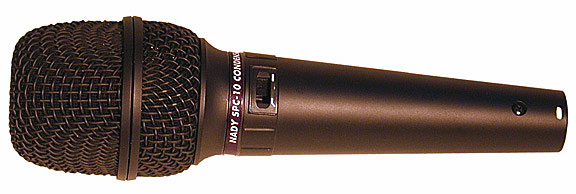

The SPC-10 is the first general purpose handheld vocal microphone of its kind to feature a studio quality large diaphragm condenser element. The SPC-10 is perfect for all live entertainment, recording, and broadcast applications requiring uncompromised studio quality sound.
  • Large (1") diameter, ultra-thin membrane, gold evaporated pressure gradient condenser capsule and transformer-less FET circuitry for superior audio with unsurpassed warmth and transparency

  • Linear frequency response across the entire audio spectrum (30~20,000Hz, with added presence in the mids and highs) for crisp, clear sound

  • Superior sensitivity, wide dynamic range, high SPL capacity and ultra-low distortion

  • External low-cut switch for rolling off low frequencies (80 Hz, 12 dB/octave)

  • Tight cardioid pattern for optimum feedback rejection

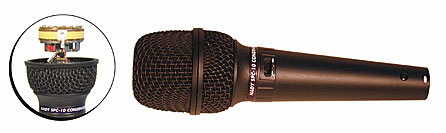

  • Multi-axis internal capsule shockmount for extremely low handling noise

  • Lightweight, rugged and durable

  • 140dB maximum SPL, 122dB dynamic range, 8mV/Pa sensitivity, 200 Ohms rated impedance with 1000 Ohms minimum load impedance, and 1.5V maximum output voltage

  • Gold plated XLR connector

  • Requires +48V phantom power, 2.7mA

  • 2.1" Diam. x 7.1" (53 Diam. x 180 mm), 11.5 oz (322 g)
