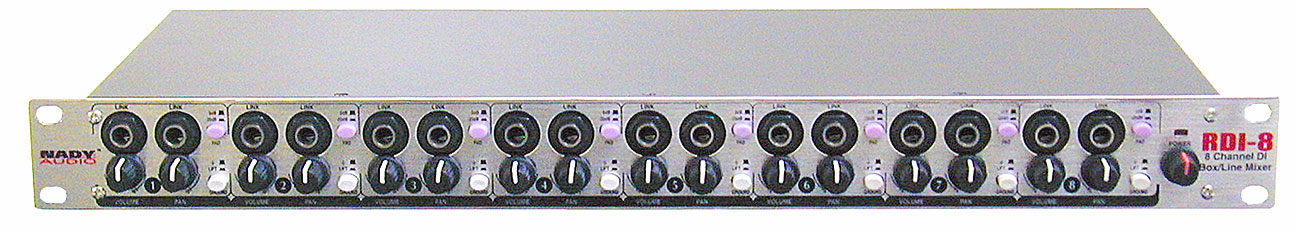

Eight
totally independent DI Box units in a 1U package for multiple signal
corrections/conversions, with 1/4"TRS jacks for balanced or unbalanced
inputs and XLR jacks for servo-balanced outputs for each channe
-
Each
DI box eliminates impedance mismatch problems and converts any sound
source — from guitar to speaker inputs — into a clean,
powerful hum-free, noise-free and interference-free balanced signal
perfect for even extremely long cable runs
-
Can
also be used simultaneously as an 8-channel Line Mixer with both
stereo Line and Master outputs. Ingenious, multi-purpose design
enables useful parallel-operation applications such as setting an
independent stereo mix for stage monitoring for an extended setup
of keyboards, samplers and synth modules while supplying independent
XLR balanced outputs to the stage box for the front of house engineer.
-
Controls
for the Line Mixer operation only include independent rotary volume
and L/R pan controls per channel for the Stereo Line output and
an additional Master Volume control for the Master Stereo output
|
-
Independent
20dB PAD and Ground Lift switches per channel control both the DI
Box and Line Mixer outputs simultaneously
-
Optimum
hookup flexibility with independent parallel link outputs for each
channel enables such useful applications as monitoring a specific
input locally while sending an XLR balanced direct output to another
source without affecting the line mixer signal
-
Advanced
circuit design and carefully selected components ensure extended linear
frequency response and ultra low distortion for pure, transparent
audio across the spectrum for both DI Box and Line Mixer operation
-
High-quality,
rugged con-struction for maximum long life and reliability
-
Shielded internal dual regulated power supply with ~115V(60Hz)/~230V(50Hz)
select switch and fused IEC power cord connector
-
Dimensions and weight: 1.75"X 19"X 8.5"(44.5X482.6X217mm), 7.15lbs
(3.25Kg)
|
|
|
