SRM Series Stereo Mic/Line Mixers

With a choice of 3 extremely flexible and fully feature-loaded models, the SRM Series represents the ultimate value in compact professional stereo mic/line mixers. Rackmounted (with supplied rack ears) or as compact desk consoles, these high-quality units are perfect for home and project studios, live club main and monitor mixing, video post-production studios, and remote broadcasting — anywhere superior performance, rugged reliability and ultra-versatility are needed in an audio mixer. With models ranging from 10 to 14 channels, the SRM mixers offer added enhanced operation, along with the increased channels, across the Series. They all share some common features:


  • Ultra-low noise mic preamps

  • Full spectrum frequency response

  • Wide dynamic range with superior headroom

  • Separate Master Mix, Control Room and Headphone Outputs

  • 3-band EQ on all channels

  • Mic and Line Balanced inputs for optimum audio integrity

  • Tape In and Record Out RCA jacks with Tape inputs assignable to Master Mix or stereo Control Room/Headphone outputs

  • Switchable global +48V phantom power on all mono input



  • Input Trim control on each mono channel

  • Pan pots on each mono channel and Balance pots on each stereo input

  • High-quality pots with center detents for all Pan/Balance and EQ controls

  • High-strength steel casing and superior construction with only highest quality components for longest life and maximum reliability

  • External AC supply for optimum signal integrity and superior transient response

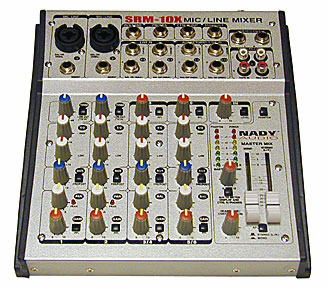

SRM-10X

LINKS

• Owners Manual SRM-10X (PDF)

• Literature (PDF)

• Bench Test Review

• Image SRM-10X (JPG)

10 channel stereo mic/line mixer

  • Two mono channels with Trim, Bass, Treble, Aux Send, Pan, and Level controls, Low Cut, Pre/Post, PFL switches, and Inserts

  • Four Stereo channels: two with Level controls, Bass/Treble, Balance controls, Pre/Post Aux Send and PFL switches; two with Level controls and PFL switches

  • Tape In RCA jacks with level control and PFL switch

  • Tape Record Out RCA jacks

  • Individual channel Aux Send, Pre/Post selectable, and Master control

  • Left and Right Main unbalanced outputs with slider control

  • Mono output with slider level control and AFL switch

  • Dual 6-segment LED display bargraph meters

  • Peak LEDs on Mono channels

  • Dimensions & Weight: 8.125"x1.625"x 9" (206mm x 41mm x 228.6mm), 3.30 lbs (1.5 Kg)
