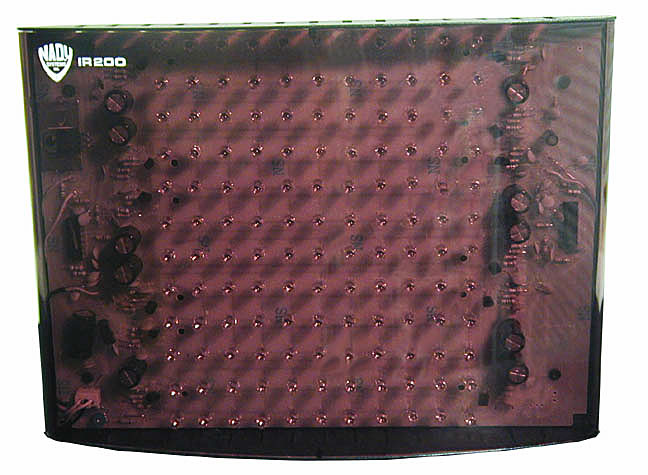

IR-200
2 Channel single-unit infrared emitter/transmitter
The versatile IR System 200 can be operated either stereo or dual channel (as for dual language application). The portable single-unit emitter/ transmitter offers ultimate ease of set-up and operation and the best high-fidelity IR sound available. The Nady IR System 200 sets the new standard in IR ALD technology, performance and value.
  • Advanced 2.3/2.8MHz IR transmission eliminates the interference from ballast (fluorescent tube) lighting which often plagued earlier 95/250KHz IR systems.

  • 4000 sq. ft. (370 sq. m.) coverage. Any number of IR-200 transmitters can easily be daisy chained together for greater coverage via dual sync in & sync out connectors on each unit.

  • IR-200 can be mounted on the wall or on optional stand for portable temporary setups

  • IR-200 transmitter can be used with either IR-210 receivers for stereo or IR-211 receivers for dual (separate) channel operation. Any number of either IR-210 or IR-211 receivers can be used in an installation.

  • IR-200 transmitter features: high gain IR-LED (light-emitting diode) emitter panel with built-in amplifiers; 2 audio inputs (fully compatible with any audio source, such as mixers, radios, VCR's, etc.); 2 MIC inputs (for optional voice-overs); built-in automatic level control (ALC) to eliminate audio peaks and ensure comfortable listening levels; 28VDC external powering from supplied AC/DC adapter simplifies installation wiring requirements; LED indicators for SIGNAL ON for both Audio In and MIC In inputs

  • IR-210/IR-211 headphone receivers feature: ultra IR light-sensitive diodes for optimum reception and maximum range; A/B channel select switch (IR-211 only); ON/OFF power switch with LED indicator; 2 audio volume controls; 2 X AAA battery operation; adjustable headband for comfortable universal fit





LINKS

Owners Manual IR-200 (PDF)

Literature (PDF)


Image IR-200 (JPG)

Image IR-210 (JPG)

Image IR-211 (JPG)
