Nady Audio Professional Audio Rack Gear

SPC Series Condenser Microphones

Nady's 3 new vocal and instrument condenser mics — the SPC-10, SPC-15 and SPC-20 — offer state-of-the-art microphone technology at breakthrough low prices.

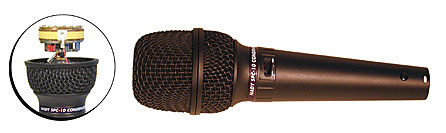

SPC-10
The SPC-10 is the first general purpose handheld vocal microphone of its kind to feature a studio quality large diaphragm condenser element. The SPC-10 is perfect for all live entertainment, recording, and broadcast applications requiring uncompromised studio quality sound.

Large (1") diameter, ultra-thin membrane, gold evaporated pressure gradient condenser capsule and transformer-less FET circuitry for superior audio with unsurpassed warmth and transparency
Linear frequency response across the entire audio spectrum (30~20,00Hz, with added presence in the mids and highs) for crisp, clear sound
Superior sensitivity, wide dynamic range, high SPL capacity and ultra-low distortion
External low-cut switch for rolling off low frequencies (80 Hz, 12 dB/octave)

Multi-axis internal capsule shockmount for extremely low handling noise
Tight cardioid pattern for optimum feedback rejection
Lightweight, rugged and durable
140dB maximum SPL, 122dB dynamic range, 8mV/Pa sensitivity, 200 ½ rated impedance with 1000 ½ minimum load impedance, and 1.5V maximum output voltage
Gold plated XLR connector
Requires +48V phantom power, 2.7mA
2.1" Diam. x 7.1" (53 Diam. x 180 mm), 11.5 oz (322 g)

LINKS
• User Guide (PDF) • Literature (PDF) • Larger Photo (JPG)

SPC-15
A versatile and great sounding multi-purpose condenser microphone, the SPC-15 is perfect for vocal and instrument miking for both live performance and recording applications.

Pressure gradient back electret condenser and transformerless FET circuitry for transparent audio reproduction and superior transient response
Wide frequency response (50~18,000Hz) with specially tailored mid-high presence for enhanced vocal and instrument punch and exceptional crisp, clear sound
Supercardioid polar pattern for maximum feedback rejection, superior sensitivity, wide dynamic range, high (136dB) SPL capacity and ultra-low distortion

Advanced internal shockmount design to eliminate handling noise
Compact all-brass housing—lightweight, roadworthy and durable for long life and reliability
Gold plated XLR connector
Requires 9~52V phantom power
1.57" Diam. x 6.37" (40 Diam. x 162 mm), 6.25 oz (175g)

LINKS
• Literature (PDF) • Larger Photo (JPG)

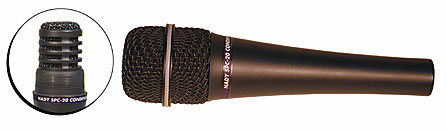

SPC-20
The SPC-20 is designed for the most critical live sound and recording applications and is ideal for handheld vocal and mid-high frequency instrument miking.

Unique 2-layer ballscreen "pop" filter for elimination of breath noises
Pressure gradient back electret condenser and transformerless FET circuitry for ultra transparency and enhanced transient response
Wide frequency response (50~16,000Hz) with specially tailored mid-high presence for vocal punch and exceptional crisp, clear sound
Supercardioid polar pattern for maximum feedback rejection
Ultra-high (140dB) SPL capacity and wide 115dB dynamic range for maximum freedom from distortion even in the most demanding applications

4.5mV/Pa sensitivity, and 200 ½ rated impedance with 1000 ½ minimum load impendance
Superior internal shockmounting to eliminate handling noise
Lightweight, rugged and durable
Requires +48V phantom power, 2mA
1.9" Diam. x 6.9" (48 Diam. x 175 mm), 9.3 oz
(260 g)
Gold plated XLR connector

LINKS
• User Guide (PDF) • Literature (PDF) • Larger Photo (JPG)
